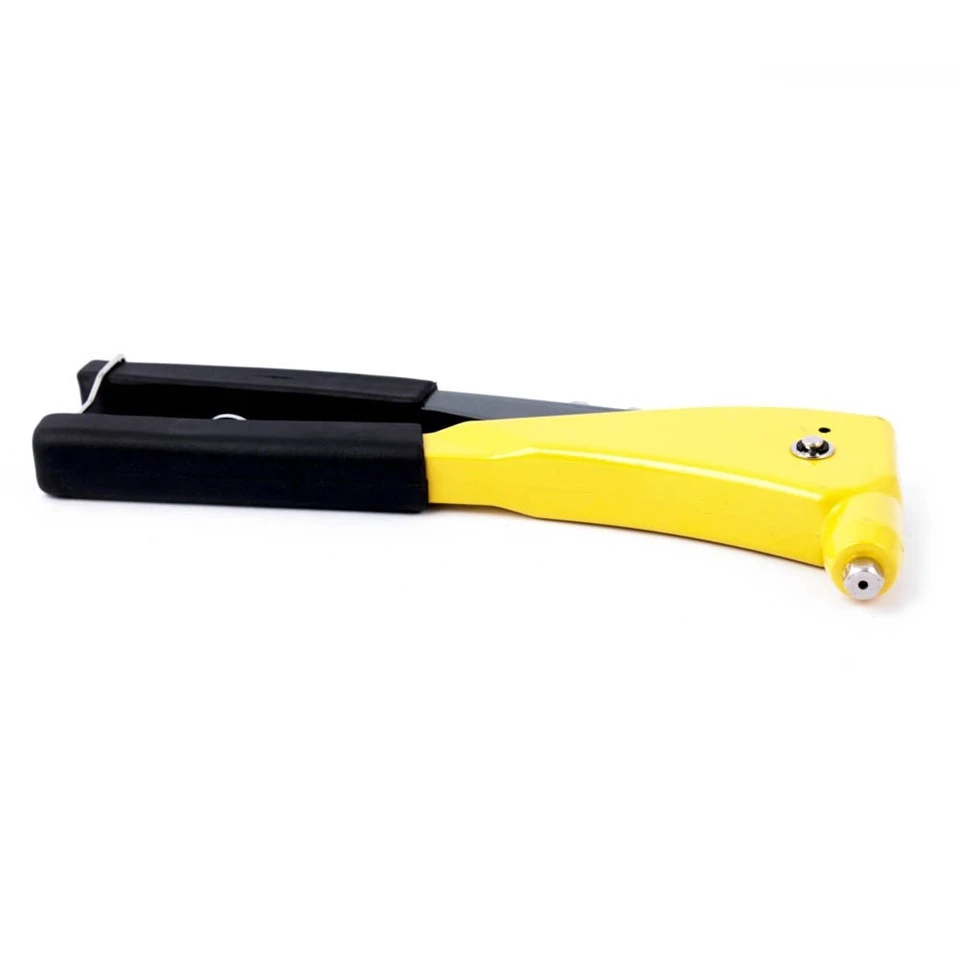

Manual Riveting Machine Body Cast

Manual Riveting Machine Die-Cast Body, is a universal tool for assembling blind rivets with diameters of 3.2, 4.0 and 4.8 mm. The purpose includes aluminum, steel and stainless rivets, which allows for making durable joints in various materials: sheets, profiles, thin-walled elements and structural components. The cast body provides high rigidity and resistance to deformation under load, and the classic lever design guarantees predictable operation and repeatable rivet shank breakage.

The total length of 260 mm is a compromise between handiness and lever strength. This makes it easier to work in typical assembly tasks in the workshop, on the construction site and in the workshop, where fast, mechanically stable joining of components is required without the need for welding or the use of screws and nuts.

Practical Problems That The Product Solves:
- Installation when there is no access to the other side of the material – the blind rivet allows the connection from the accessible side.
- Elimination of backlash and vibration in joints where the screw can unscrew.
- Quick repairs in the field, e.g. fixing covers, nameplates, handles, angles and trim elements.
- Joining thin sheets without the risk of burning or deformation associated with welding.
- Work in hollow profiles and structures where the nut does not have support.

The tool works with commonly used blind rivets to facilitate the supply and replacement of consumables. The 3.2/4.0/4.8 mm range covers the most common diameters used in the assembly of light and medium structures. The use of steel and stainless rivets increases the resistance of joints to external conditions, and aluminum rivets are suitable where low weight and simpler breaking are a priority.

Safety Of Use:
A manual riveting machine is a tool without electrical power, however, it requires caution. When breaking, the rivet shank breaks off and may bounce off – it is recommended to use safety glasses and point the tool away from bystanders. The movable arms and head can pinch skin or clothing; Keep your hands out of the lever zone. Do not exceed the range of rivet diameters and hardness indicated for the model (3.2, 4.0, 4.8 mm, aluminum, steel, stainless rivets) – too much resistance may lead to tool damage or injury. Before work, check the condition of the working parts, the tightening of the components and the patency of the stem channel. After riveting, remove the broken pins and keep the station clean. Store in a dry place, out of reach of children. Work gloves improve grip and protect against abrasions.

Dimensions:
- Overall length: 260 mm

Features:
- High rigidity cast body – stable rivet guidance and resistance to deformation under load.
- Supported diameters 3.2, 4.0, 4.8 mm – covering the most popular mounting applications.
- Compatible with aluminum, steel and stainless rivets – flexibler material for working conditions, from light applications to environments requiring increased corrosion resistance.
- Classic manual design – independent of the power source, ready to work in the field and in places with limited access.
- Balanced lever length of 260 mm – favorable ratio of ergonomics to the force needed to break the stem.
- Simple operation and servicing – intuitive operation, low training threshold, ability to work with widely available blind rivets.


Parameters:
- Unit of measurement: pcs
- Product weight: 0.538 kg
- Package contents: manual riveting machine for blind rivets
- Other product parameters:
• Rivet diameter range: 3.2 mm, 4.0 mm, 4.8 mm
• Rivet material: aluminum, steel, stainless steel
• Tool type: manual riveting machine, cast

Body Application:
Designed for joining metal and composite components in assembly, renovation and service work. It works well in workshops, construction installations, locksmith work, automotive services (fastening covers and panels), in the assembly of light steel and aluminum structures, bodies, ventilation ducts, as well as in DIY hobby work. Enables quick and durable attachment when access is only on one side of the connection.

Benefits Of Using This Type Of Product:
- Permanent connections without access to the other side of the component.
- Quick assembly without the need for welding and threading.
- Material versatility thanks to support for aluminum, steel and stainless rivets.
- Mobility and independence from the power supply.
- Reduction of backlash and vibrationcompared to screw connections in thin sheets.
- Repeatable results and a low training threshold for new employees.
- Economical operation – wide availability of standard rivets.

Instructions For Use:
1) Rivet selection: choose 3.2/4.0/4.8mm diameter and material (Al/Steel/INOX) suitable for the components to be joined and the working conditions.
2) Hole preparation: drill a hole with a diameter according to the selected rivet, remove chipsand burr.
3) Rivet embedding: insert the rivet body into the mounting hole, insert the rivet shank into the jaws of the riveting machine.
4) Riveting: tighten the levers until the stem breaks; perform several clamping cycles if necessary.
5) Finishing: make sure the rivet head adheres to the material and the shank has been broken off; remove the broken stem from the tank or jaws.
6) Inspection: check the stability of the connection; in case of slack, use a larger rivet or verify the diameter of the hole.
7) Maintenance: clean the tool from swarf, store in a dry place; periodically check the condition of the jaws and screw connections.
