Professional Bar Clamp
Strong engineering plastics in compliance with RoHS and REACH
Induction hardened rail for improved strength and durability
Can be converted by spreader
Description
Professional Bar Clamp
Strong engineering plastics in compliance with RoHS and REACH
Induction hardened rail for improved strength and durability
Can be converted by spreader
Ergonomic design for comfortable grip
Product Details

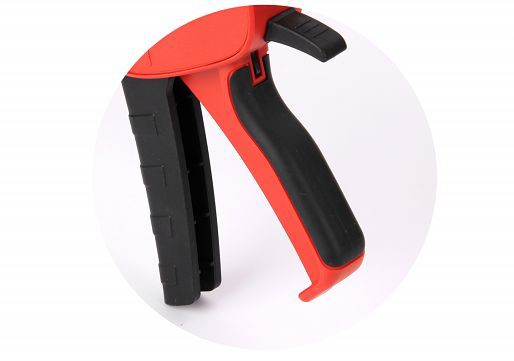

Comfortable Handle
Long leverage design for reaching high pressure easily

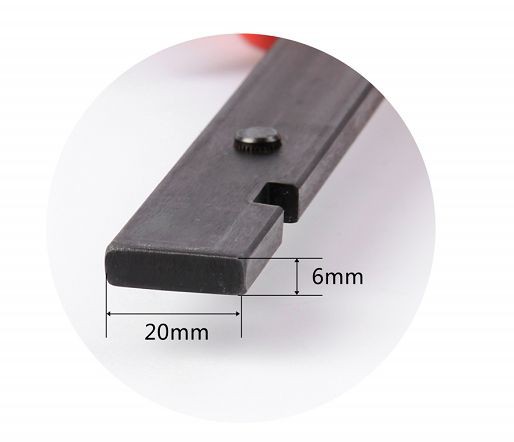

Induction hardened rail
Induction hardened rail for improved strength and durability

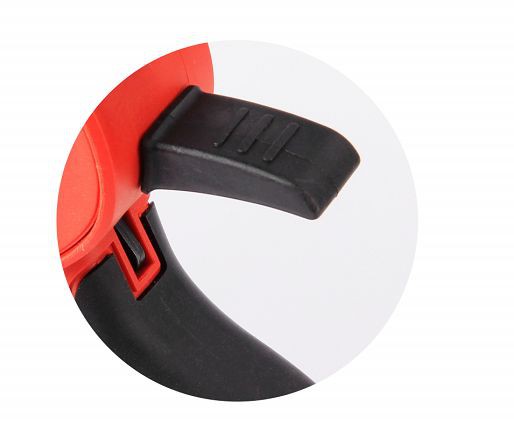

Quick release trigger
Can be moved quickly by pressing the trigger
TPU protective cushions
Anti-slip soft TPU cushions for protection of workpiece
Holding the demonstration

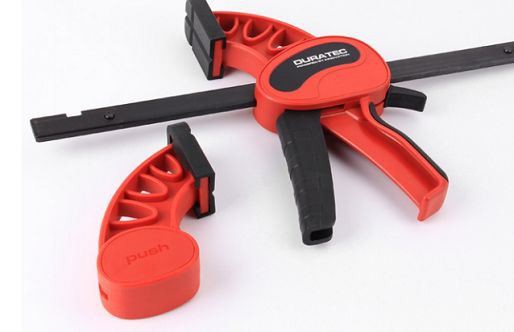

Converted to spreader
Instructions for spreader

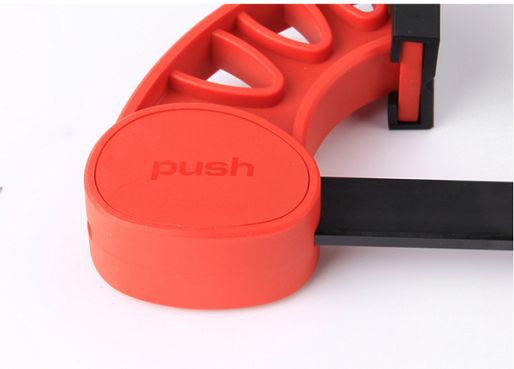

Press the button
Take down the fixed jaw
Fix it to the other side of rail
Product Parameters
Depth | Clamping Capacity | Clamping Force (N) |
30mm | 100mm | 150N |
60mm | 150mm~600mm | 700N |
75mm | 150mm~900mm | 1350N |
90mm | 150mm~1200mm | 1800N |

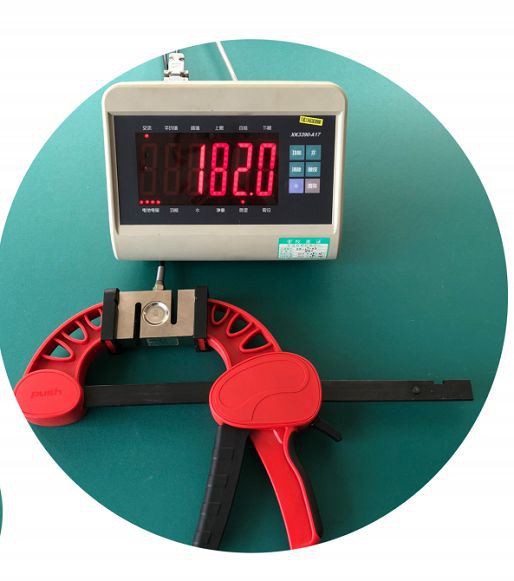

Clamping force test
Size,90mm
The clamping force can reach 180KG
Size,75mm
The clamping force can reach 135KG
Size,60mm
The clamping force can reach 70KG
Size,30mm
The clamping force can reach 16KG

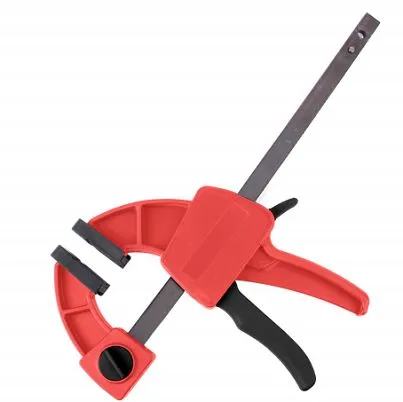

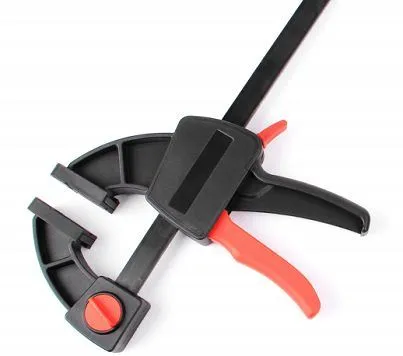

Product Photo
60mm
80mm
